Description
The RAM® X-Grip® is the perfect holder for virtually any phone or tablet with or without a case.

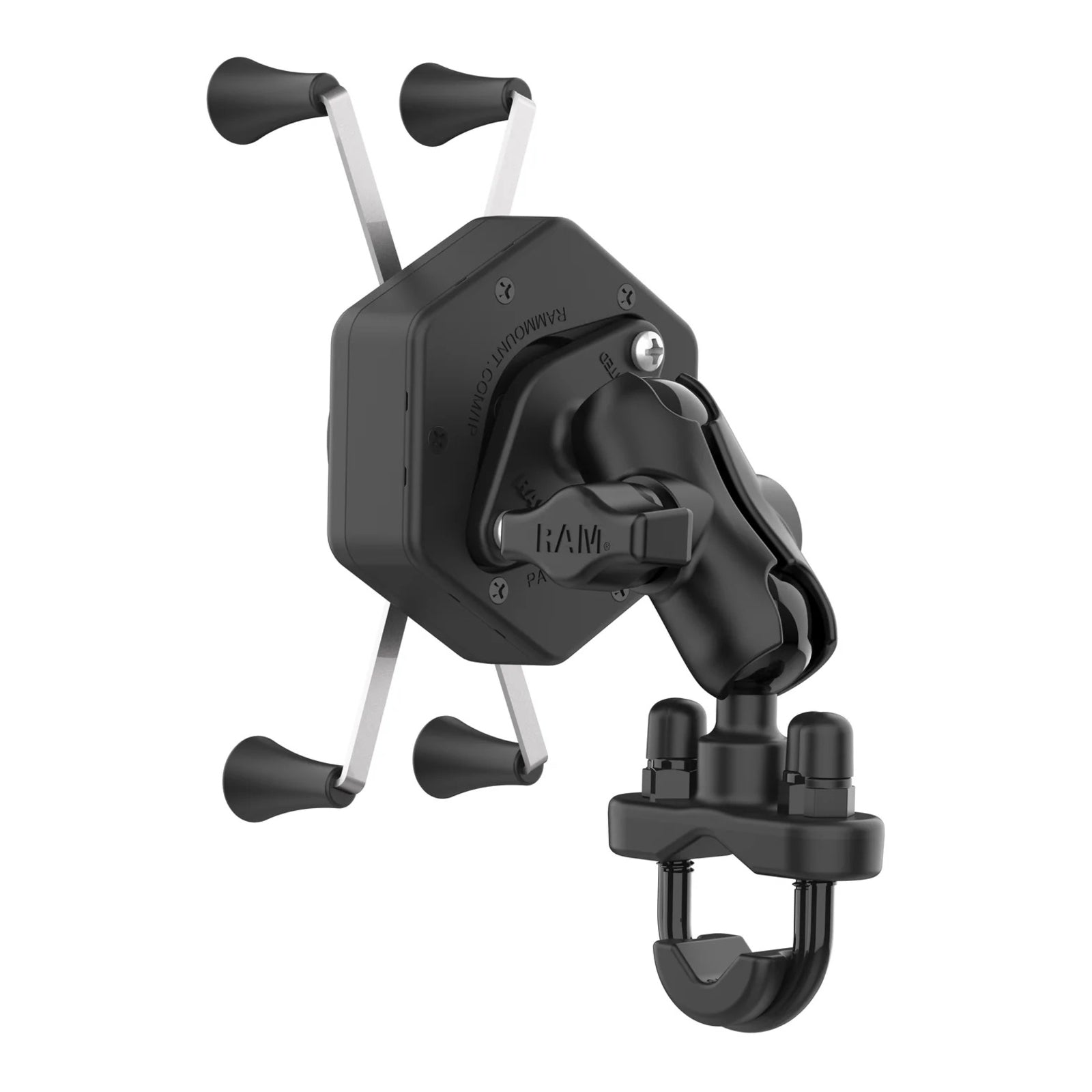

The RAM® X-Grip® Large Phone Mount with RAM® Vibe-Safe™ & U-Bolt Base - Short (RAM-B-149Z-A-UN10-462) is a combination of the RAM® X-Grip® Phone Mount with Handlebar U-Bolt Base and the RAM® Vibe-Safe™. Our vibration-damping accessory is designed to protect electronic devices from a wide range of vibration frequencies.
This product comes pre-assembled with the device tether that is recommended for outdoor applications. The RAM® X-Grip® can rotate between portrait and landscape by loosening the center screw. This product comes with one (1) short B size arm and one (1) RAM® U-Bolt Base that accommodates rails from 0.5" - 1.25" in diameter and an optional device tether that is recommended for outdoor applications.
Features:
- RAM® Vibe-Safe™ dampens a wide range of vibration frequencies
- Made of high-strength composite and stainless steel hardware for durability and reliability in the most demanding environments
- Unique structure and thoughtfully designed with all industries in mind
- Backed by a lifetime warranty

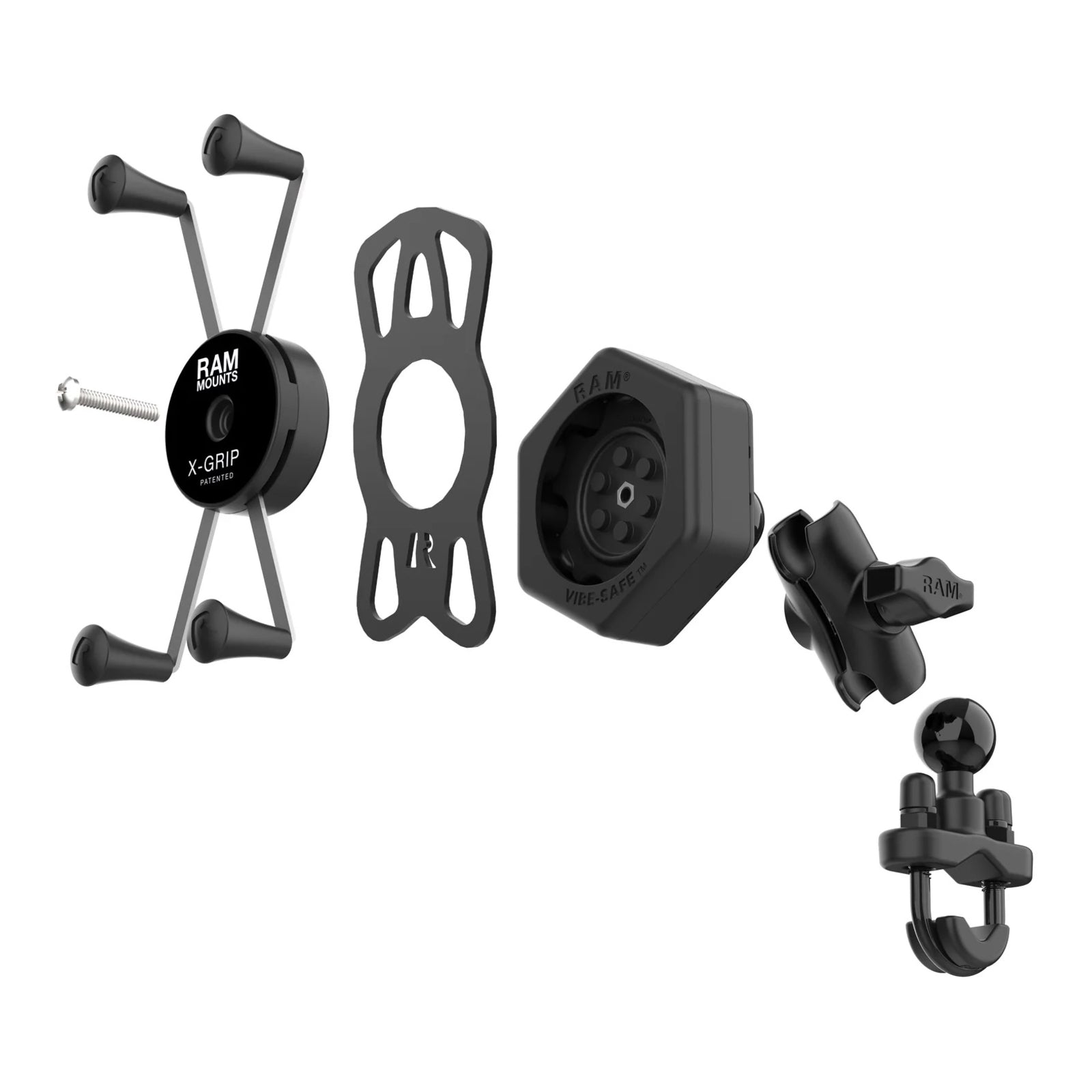

Hardware Included:
- (1) Optional Tether
- (1) Glue Tube for Rubber Caps
- (1) 1/4"-20 U-Bolt for 0.5" - 1" Rails
- (1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
- (2) 1/4"-20 Nylock Nuts
- (2) Rubber Caps
- (1) U-Bolt Spacer
Holder Dimensions:
- Width Range: 1.75" - 4.5"
- Depth Range: 0.875" max
Clamp Range:
- 0.5" - 1.25" diameter
Socket-to-Socket Length:
- 1.75"
Ball Size:
- B Size (1")
Weight Capacity:
- Standard Use: 2 lbs
- Heavy-Duty Use: 1 lb
Materials:
- Marine-grade aluminium
- High strength composite
- Stainless steel
Packaging Type:
- Retail Bag
Additional Information:
- A reduction in vibration does not guarantee full protection of the device. External immeasurable factors may cause damage to phones, cameras, and other devices while mounted in the RAM® Vibe-Safe™. National Products, Inc does not assume responsibility or liability for any such personal injury, death, or property damage. RAM® mounts lifetime warranty is limited to RAM® mounts and components. The warranty does not include any device mounted or attached to a RAM® mount, such as a phone, GPS, camera, computer, or other device.
