Description

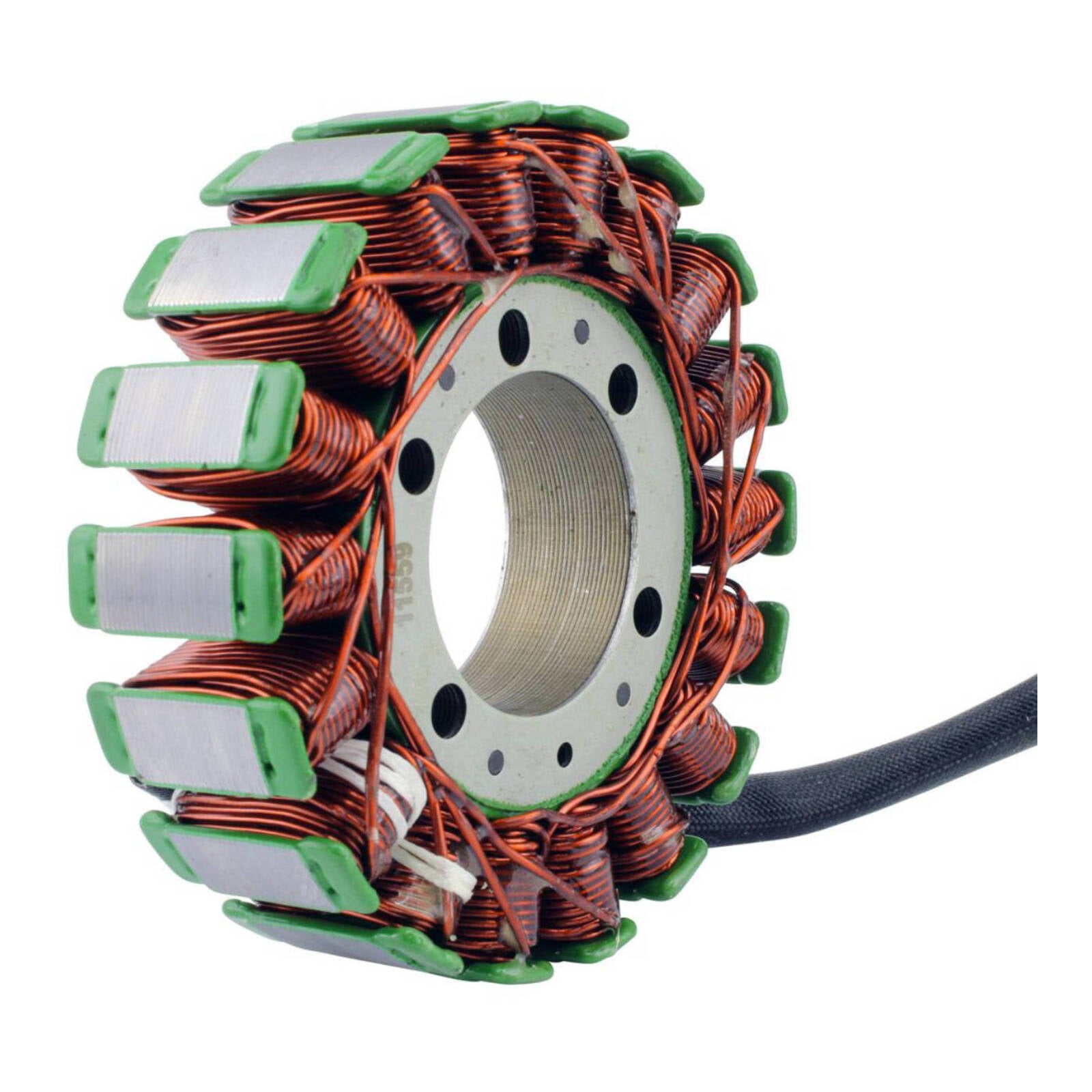

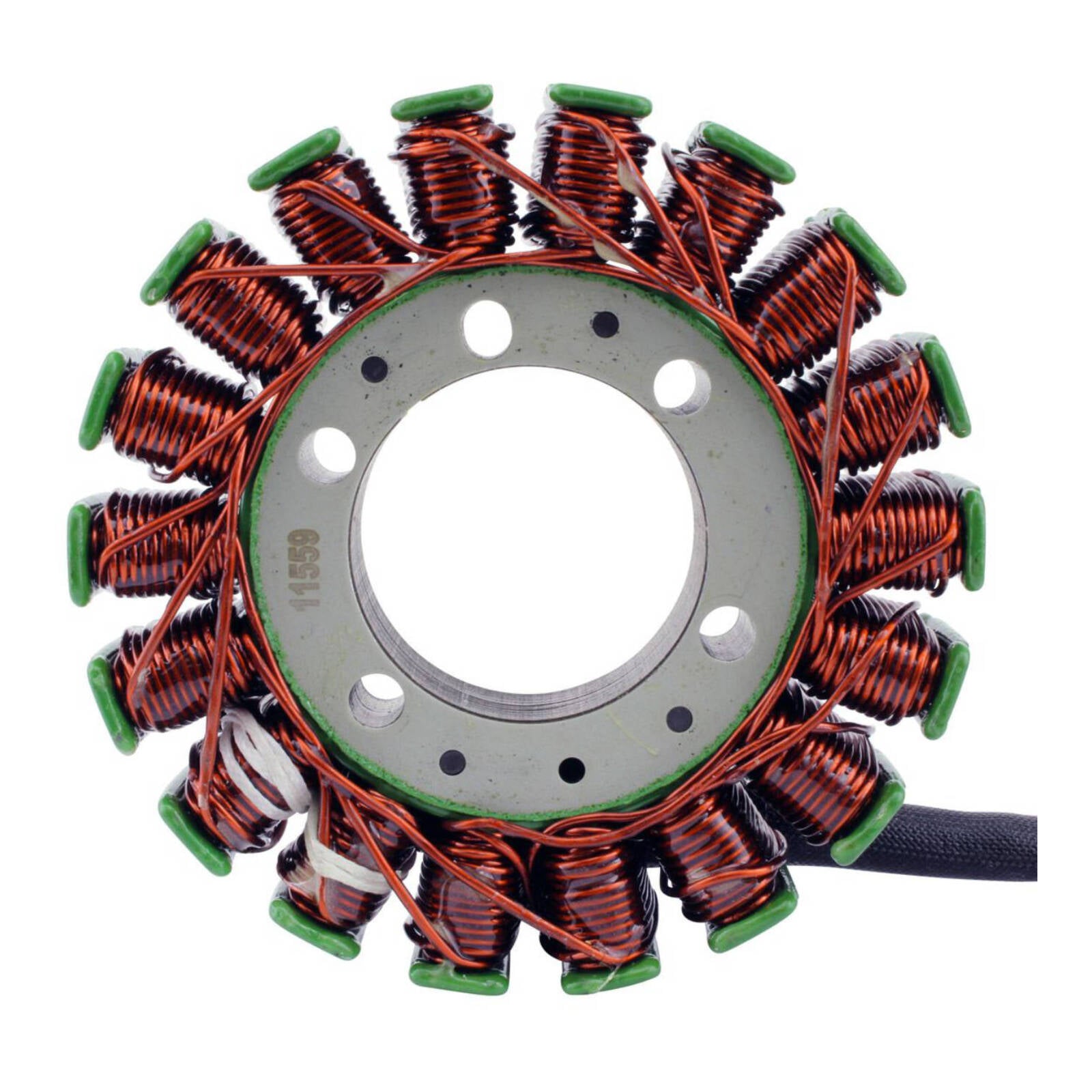

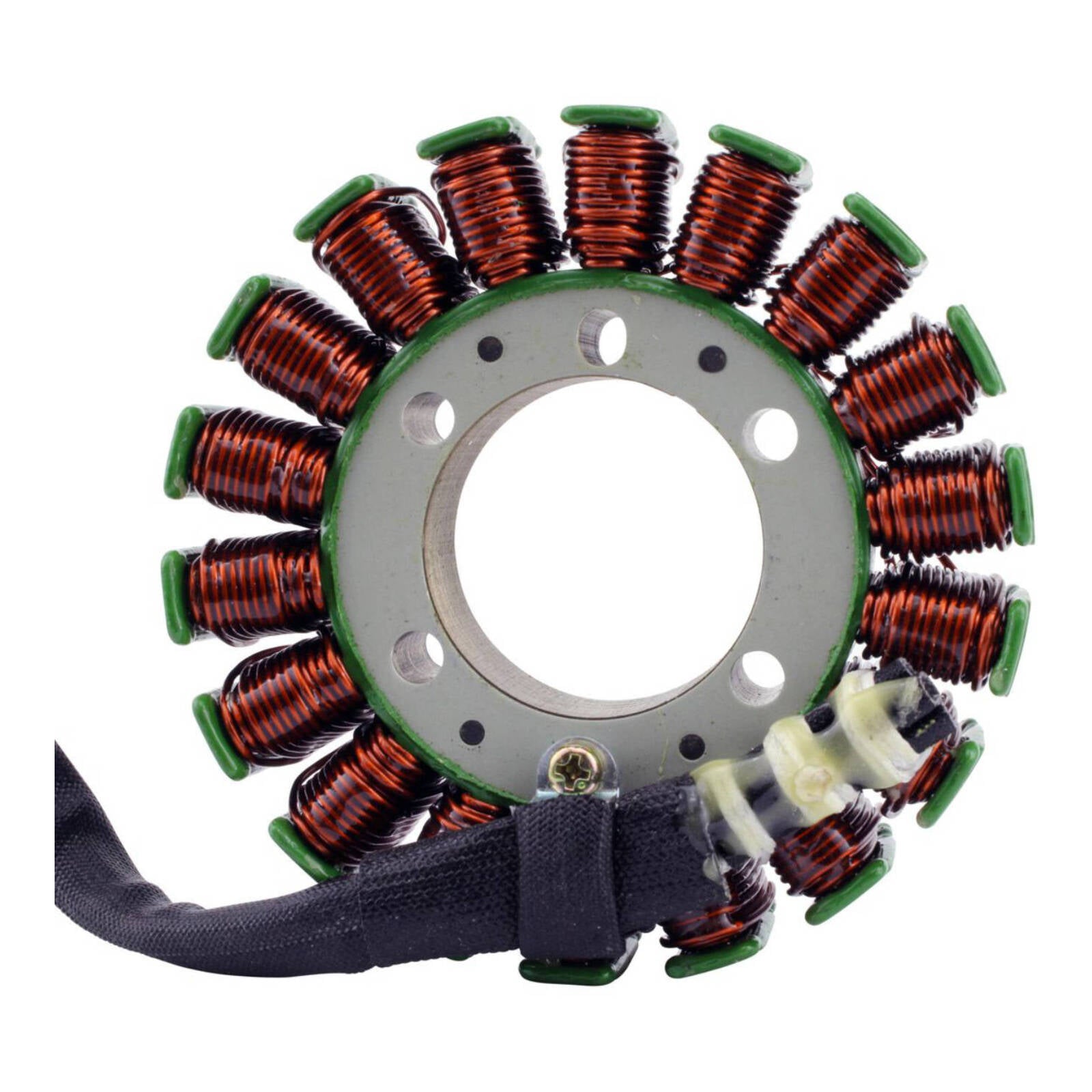

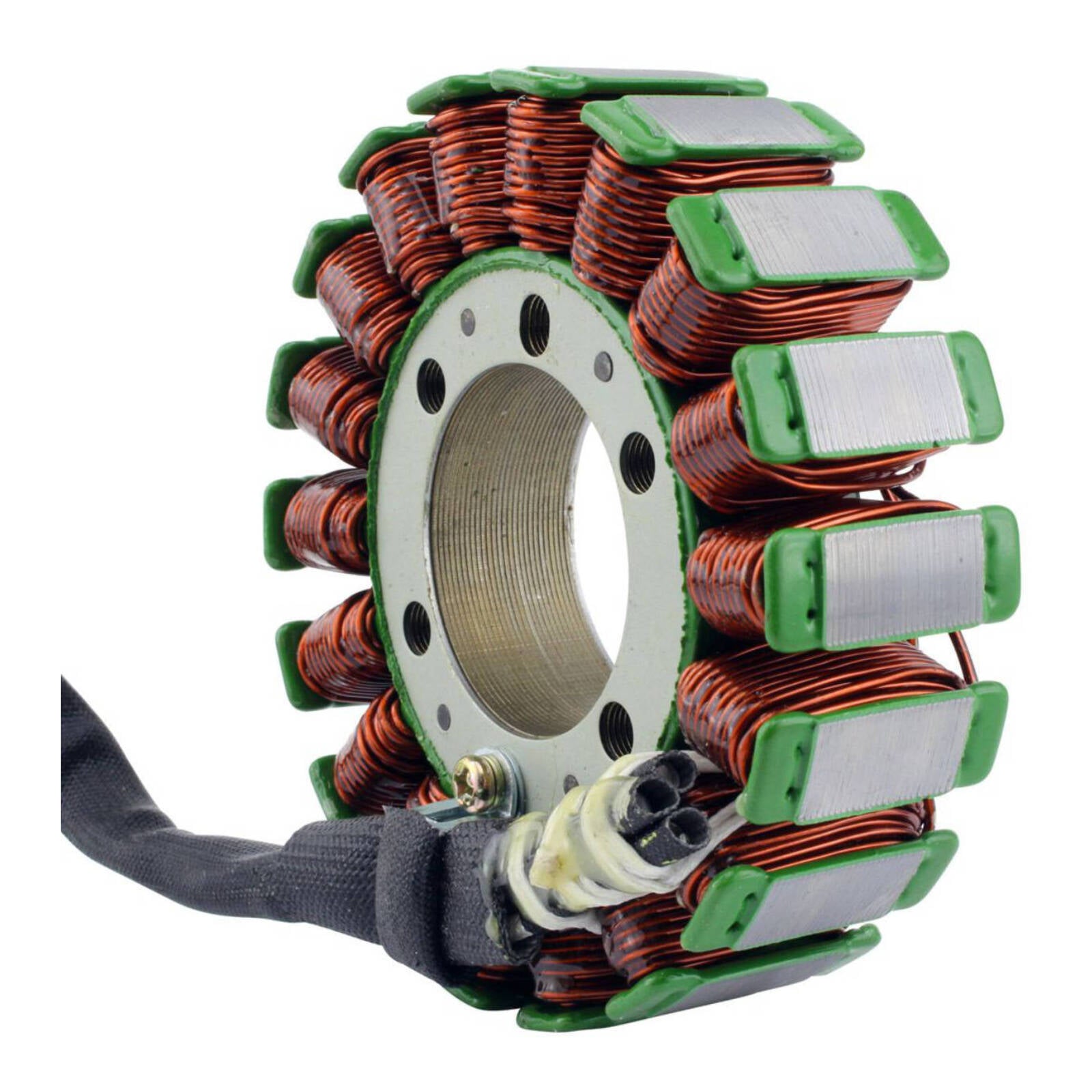

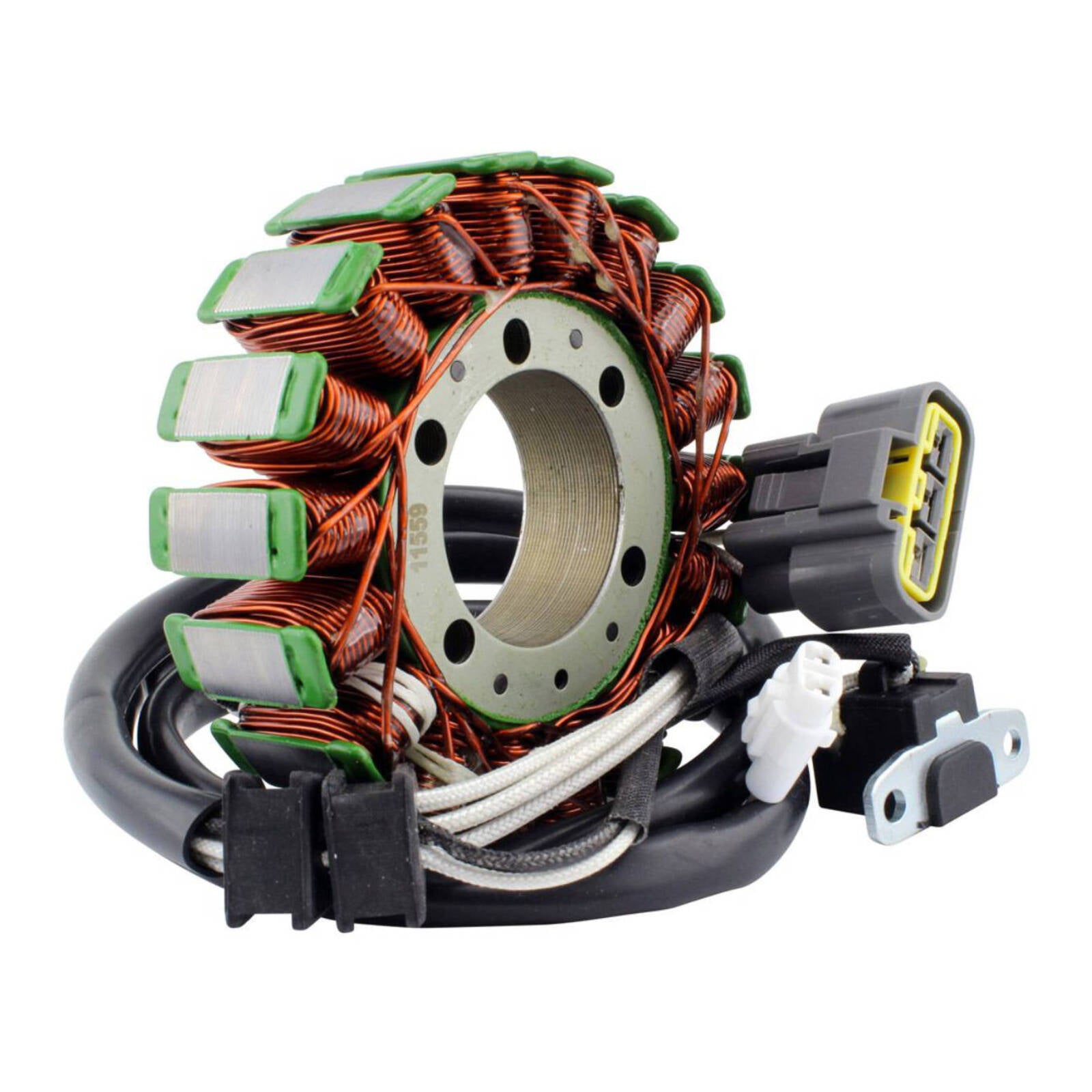

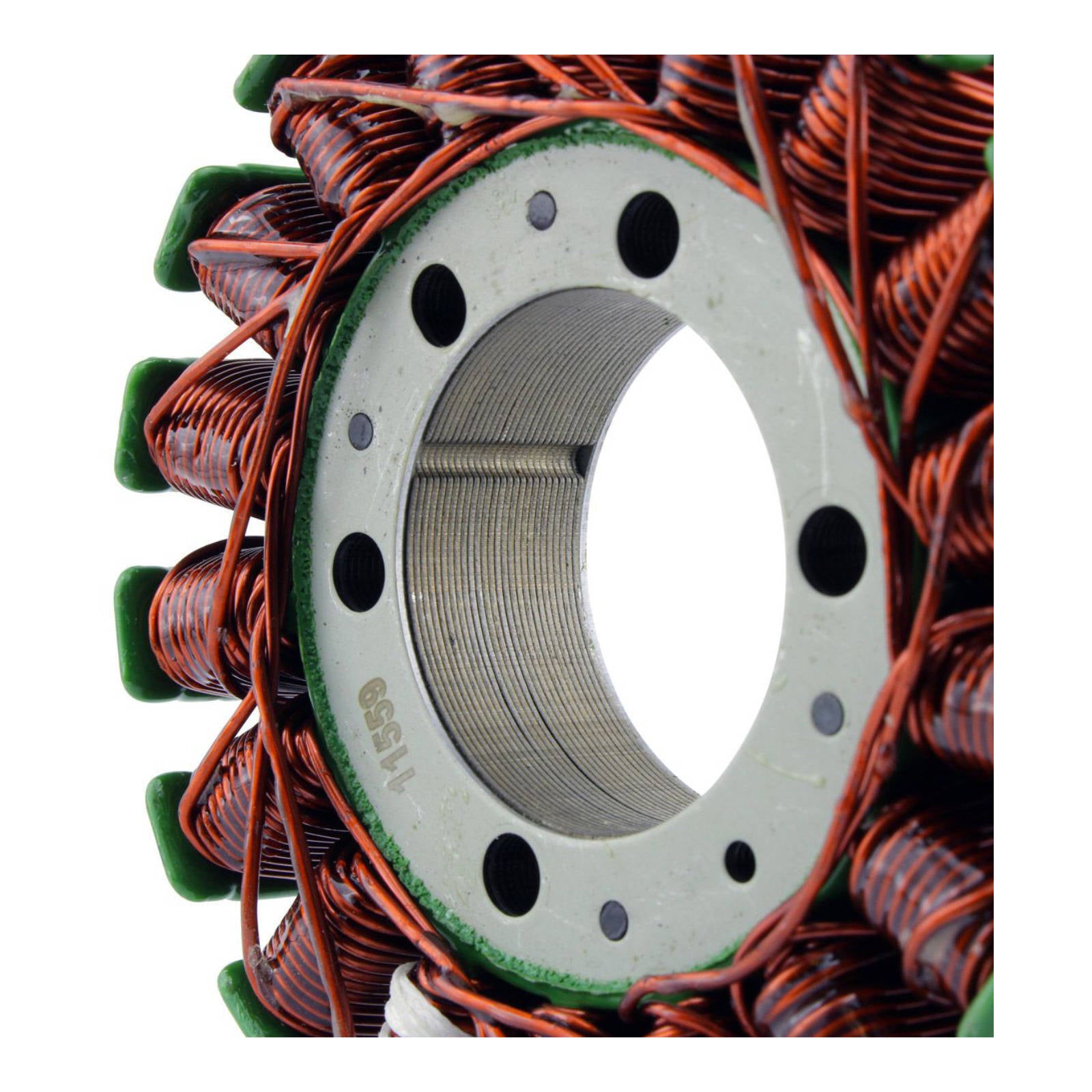

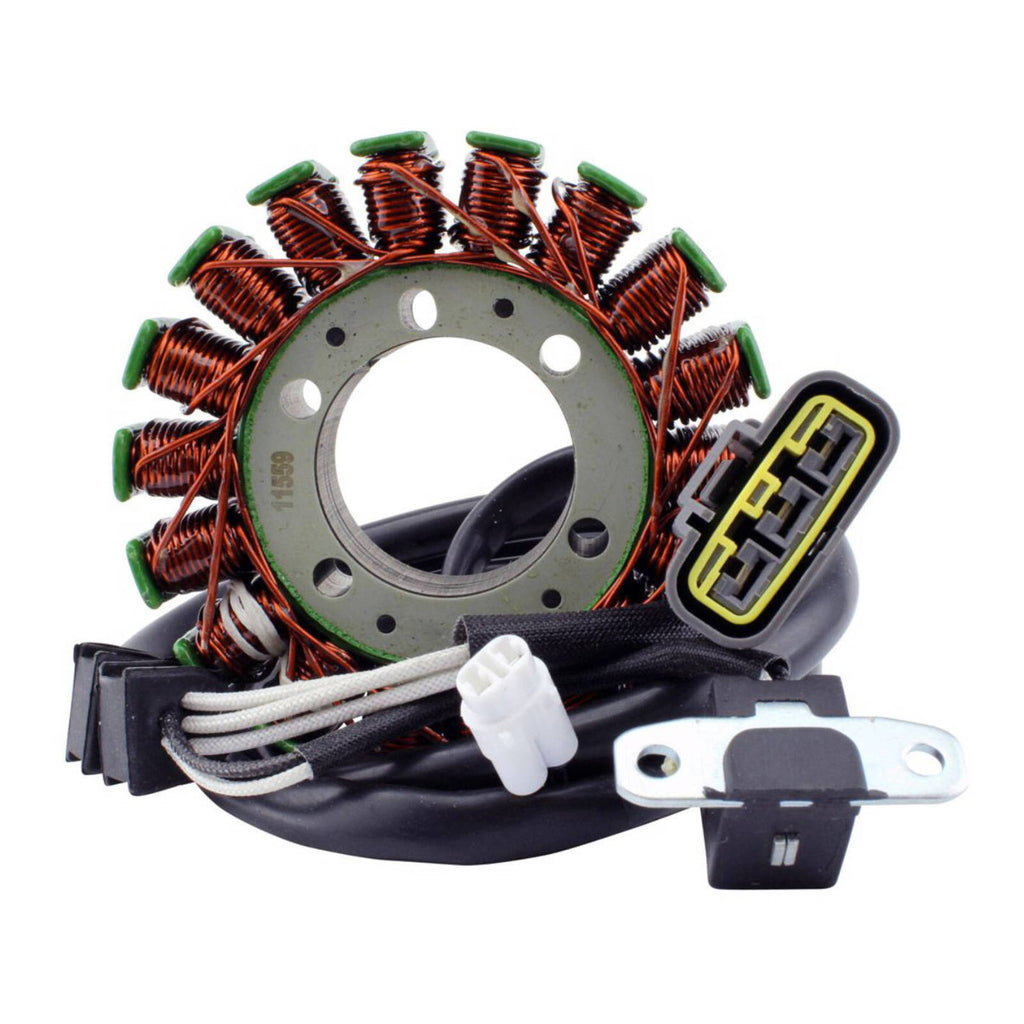

Plug-and-play replacement generator stator from RM Stator.
Dimensions:
- Interior diameter: 42mm
- Exterior diameter: 66mm

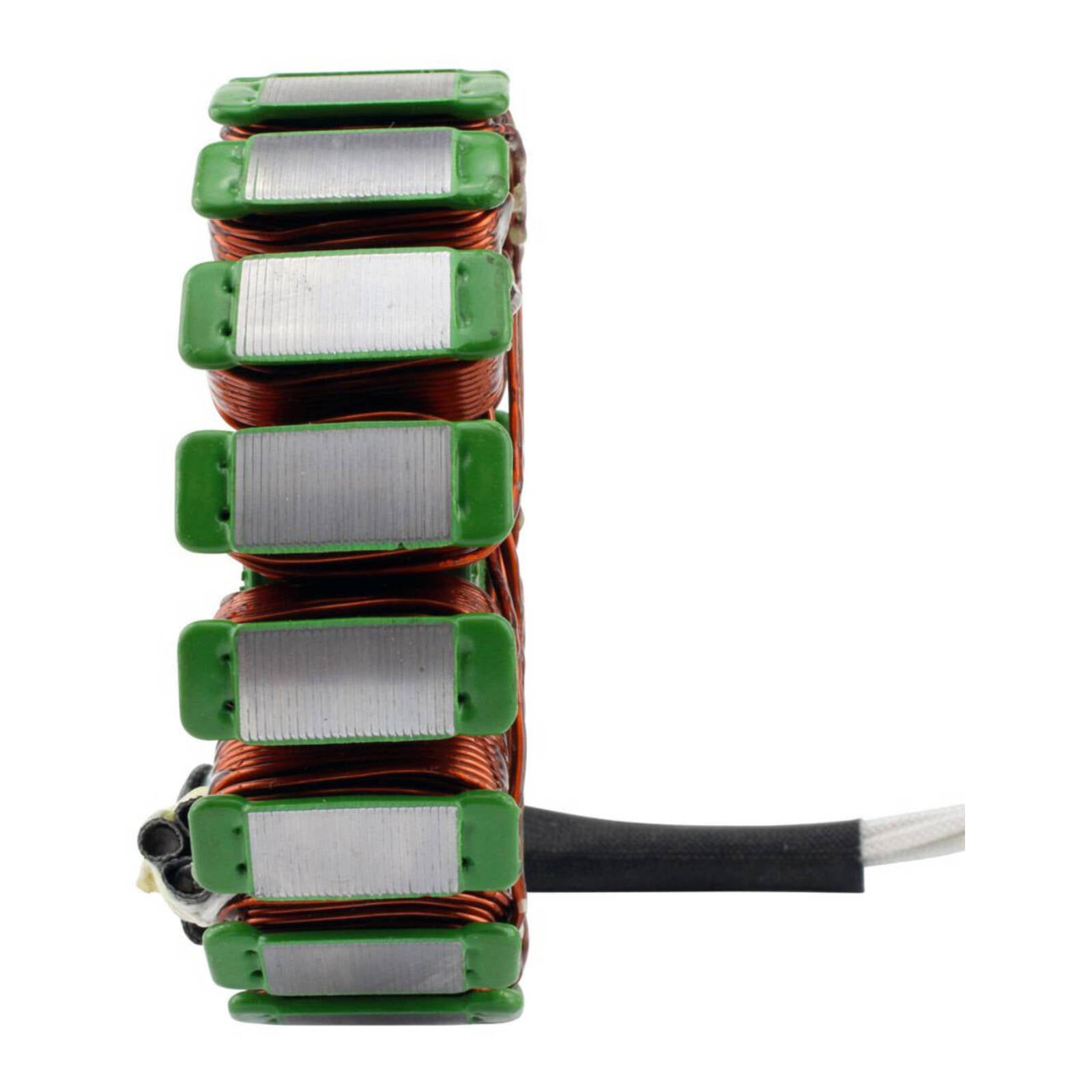

- Thickness: 22mm
- Length of wires stator to grommet: 130mm
- Length of wires grommet to plug: 1096mm
- Length of pickup coil's wire to grommet: 115mm
Other specifications:
- Number of wires: 5
- Number of plugs: 2
- Number of pins: 5
- Number of poles: 18
- Wire to wire resistance:
- Alternator: Between each white = 0.4 ohms +-20%
- Source: Black to White = 200 ohms +-20%
Details:
- < li>Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius

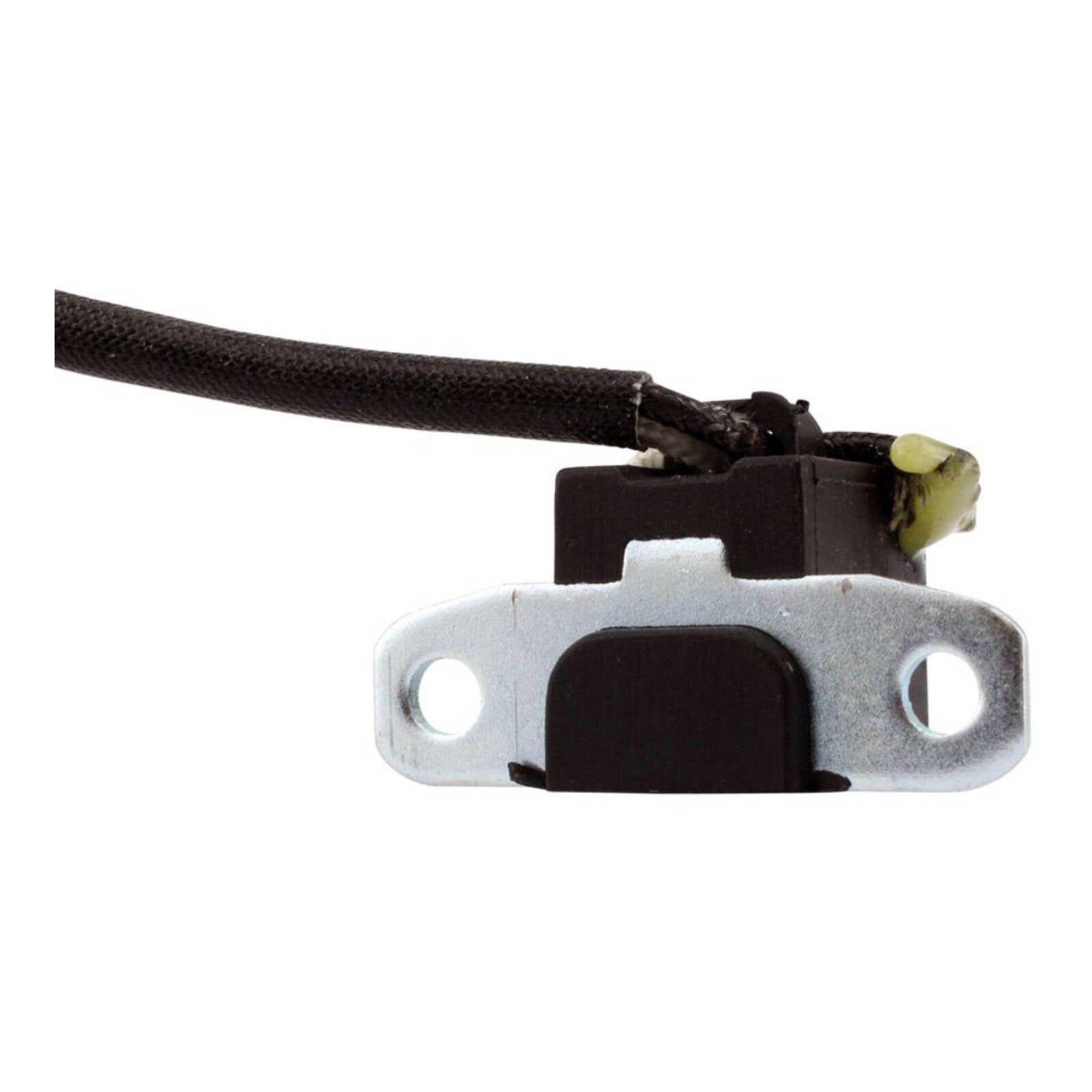

- Pick up pulsar coil included

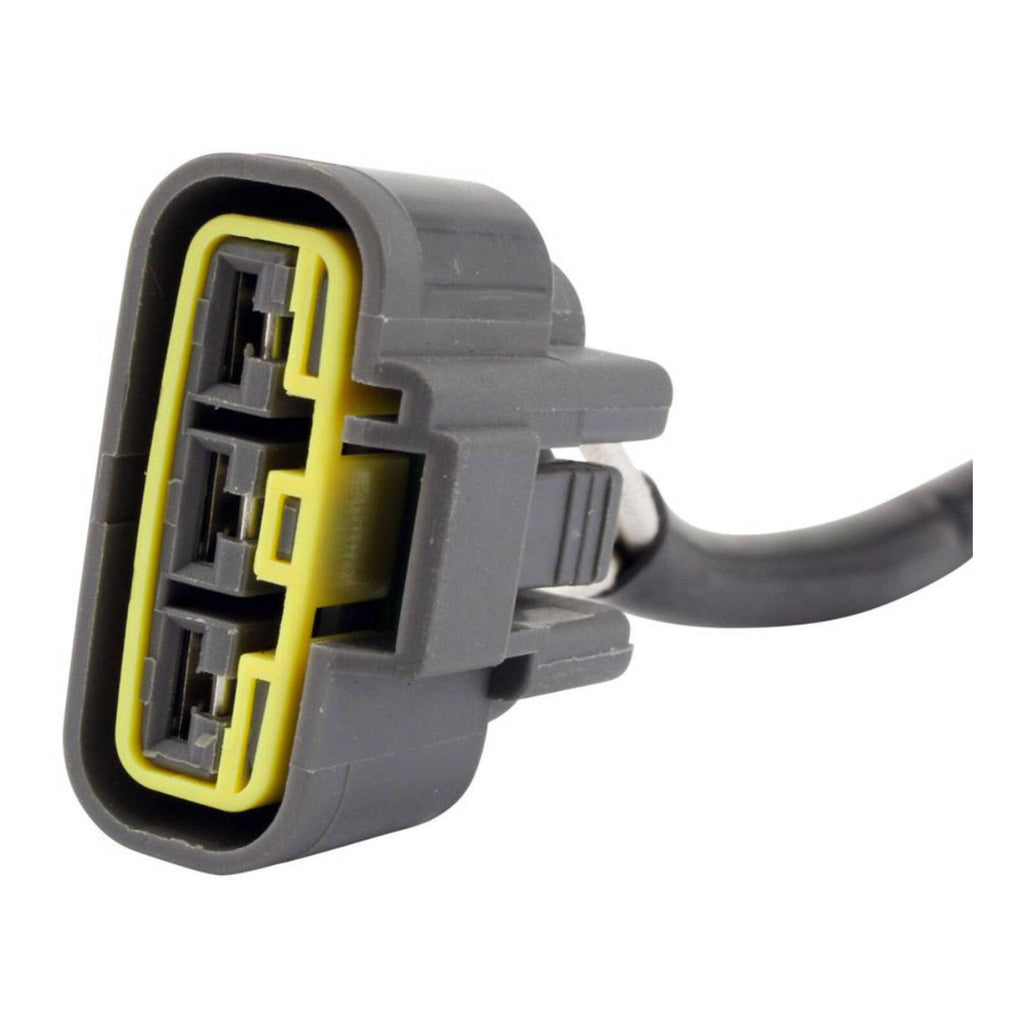

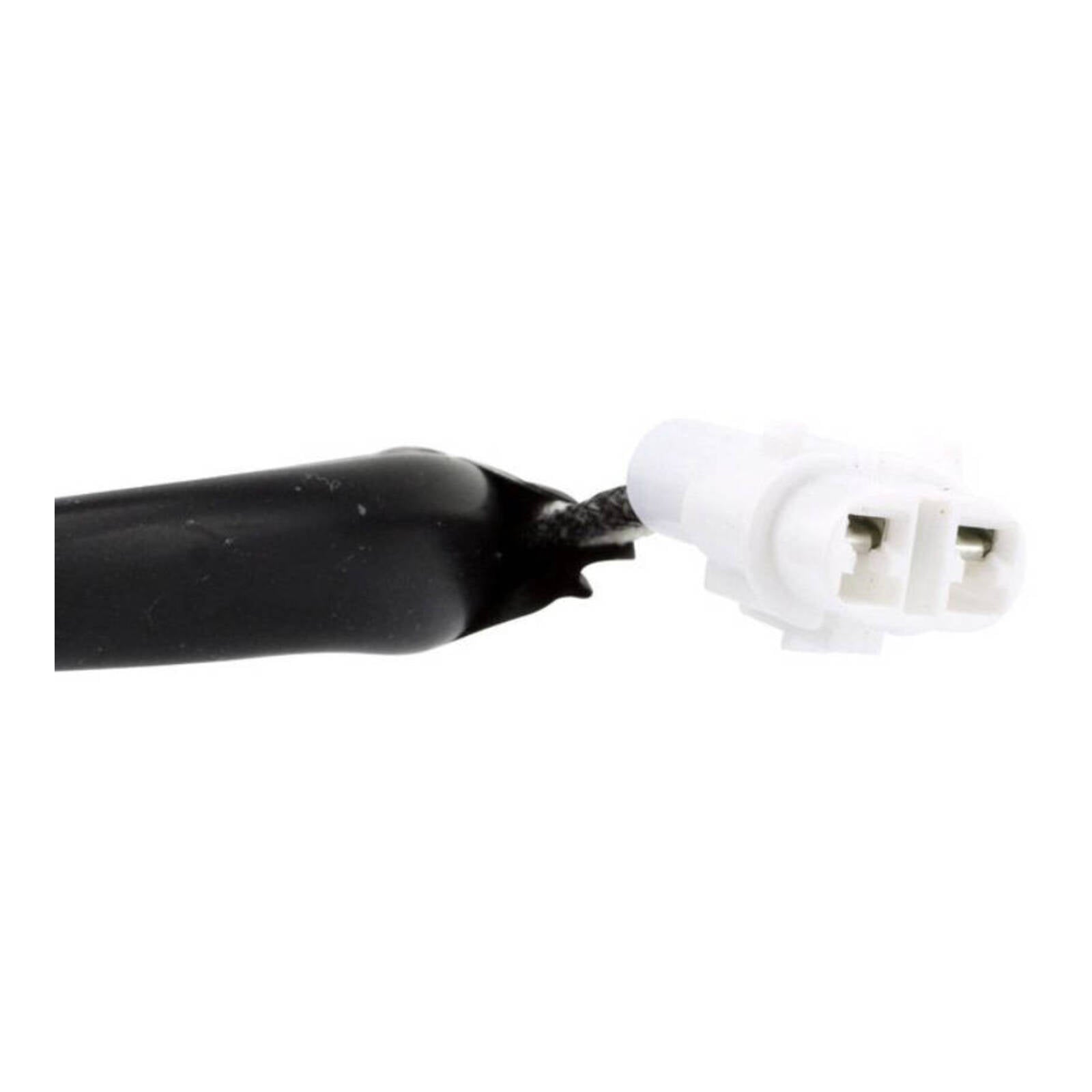

- Connector included
- Rubber grommet included
- All products shipped are tested
Direct replacement to your original unit.
- Plug-and-play, direct fit, easy installation
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius.
- Pick up pulsar coil included
- Connector included
- Rubber grommet included
- All products shipped are tested
Dimensions:
- Interior diameter: 42 mm
- Exterior diameter: 66 mm
- Thickness: 22 mm
- Length of wires stator to grommet: 130 mm
- Length of wires grommet to plug: 1096 mm
- Length of pickup coil's wire to grommet: 115 mm
Other Specifications:
- Number of wires: 5
- Number of plugs: 2
- Number of pins: 5
- Number of poles: 18
Wire to Wire Resistance:
- Alternator: Between each white = 0.4 ohms ±20%
- Source: Black to White = 200 ohms ±20%
