Description
RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.
- Direct replacement to your original unit.
- Plug-and-play, direct fit, easy installation.
- No assembly required
- Higher grade of electric components.
- Improved heat sink and charging capabilities
- The quality exceeds the OEM equipment

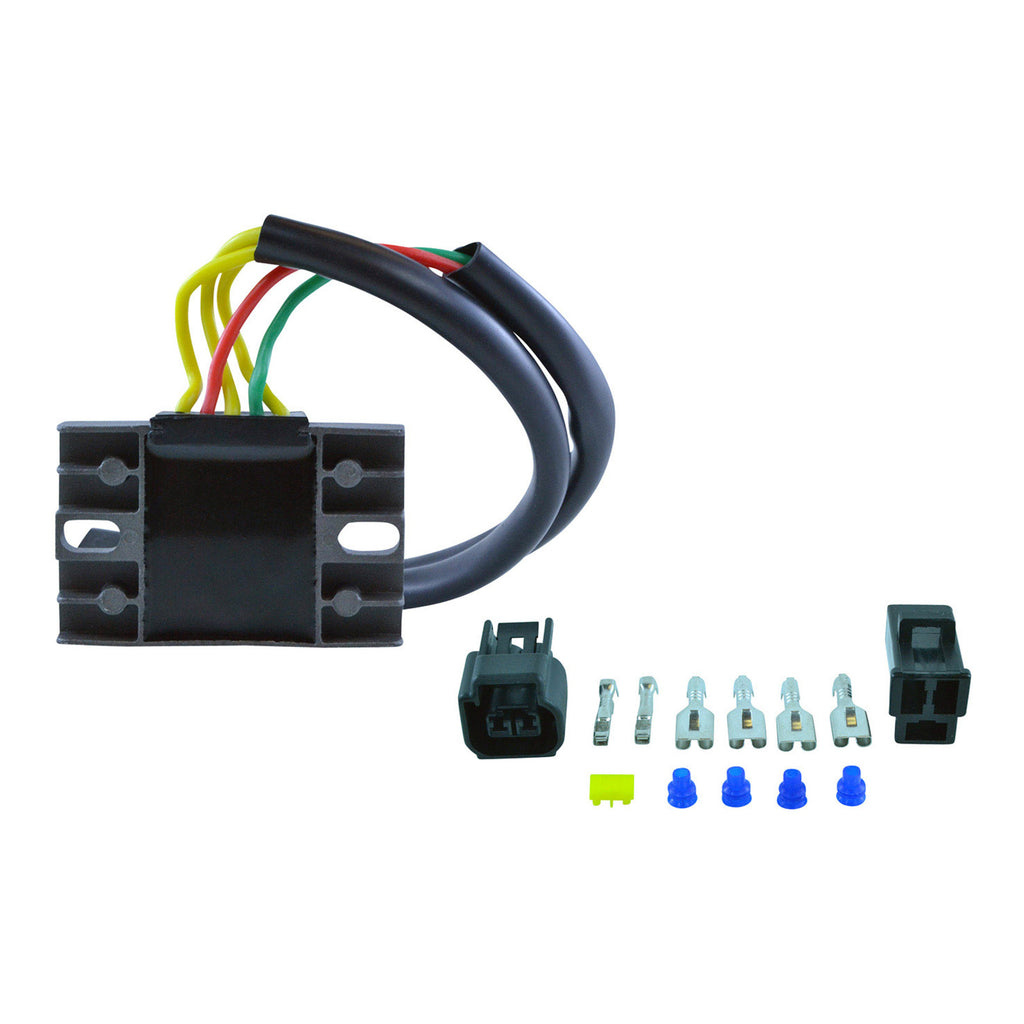

RM STATOR has even included the opposite connector (main harness side), as they know these are often melted/corroded/defective and a major cause for repetitive electrical issues.
Battery condition is extremely important. No voltage regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
Please Note:
- All electrical components must be fitted by a qualified technician.
- Before fitting electrical components ensure the root cause of the original failure has been addressed.
- The absence of either of points 1 or 2 above, will void any warranty.
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- No assembly required
- Higher-grade of electric components
- The quality exceeds the OEM equipment
- All products shipped are tested
Specifications:
-
Dimensions:
- Width: 75 mm
- Length: 50 mm
- Height: 28 mm
- Wires length: 215 mm and 285 mm
- Fixation holes center to center: 63 mm
-
Other Specifications:
- Number of plugs: 2
- Number of pins: 5
- Number of wires: 5
- Minimum Charging Voltage: 14.5 V +- 0.5 V
- Maximum Charging Current: 50 A / 500 W
- Open Circuit Voltage: 15 V
- Operating Temperature: -20° to 85°
